Generation 3: Smart Ultrasonic Metered Standpipes
Upgrade your network infrastructure with Saxon’s patented M213 Smart Ultrasonic Metered Standpipes newest Gen 3 model. Compliant with strict NMI R 49-1 standards, these non-mechanical meters use direct ultrasonic technology to track water flow on 'spring and ball' hydrants without the wear and tear of traditional moving parts. Featuring no internal moving components, it eliminates mechanical degradation, requiring only minimal servicing and biennial calibration under normal operating conditions.
Built to endure harsh Australian field environments, each tamperproof unit is shielded by a robust cast aluminium cover, powered by a long-life, non-rechargeable battery, and secured by a comprehensive 24-month warranty. Customise your deployment to fit your operations: available as a standalone hardware solution or fully integrated with our SR2 Platform (with optional theft-deterrent Asset Tracking). Contact our office today for full technical specifications and a tailored quote.
Core Specifications & Compliance
Patented Innovation: M213 SMART Ultrasonic Metered Standpipe | Pat. AU 2018901862
Measurement Principle: Direct Ultrasonic technology (non-mechanical with zero moving parts)
Metrological Standards: Class 2 accuracy (+/- 2%) conforming to ISO 4064:2005 standards
Flow Security: High-security meter mechanism cannot read backwards
Hardware & Fitting Options
Fitting Versatility: Fully customisable configurations with all fittings from 20mm to 65mm available
Unit Weight: Highly portable field construction ranging from 6 kg to 11 kg (size dependent)
Enclosure: Heavy-duty, tamperproof cast aluminium protective cover built for harsh field environments
Power & Maintenance
Battery Configuration: High-capacity, custom dual-cell Li-SOCl2 long-life battery pack
Zero Downtime: Engineered with a specialised system requiring no recalibration
Operational Servicing: Minimal maintenance required under normal operating conditions
SMART Connectivity
System Capabilities: Integrated remote reading, long-term historical data storage, and optional Asset Tracking for advanced fleet security.
Analogue Metered Standpipes
Alongside our SMART Ultrasonic range, Saxon supplies a comprehensive selection of analogue metered standpipes across all Australian states and territories. Engineered for reliable performance, our product line includes low-to-high-flow configurations in varied sizes, with a versatile selection of connections and fittings available to meet your exact operational specifications.
All Saxon analogue standpipe models are built using high-strength T5 or T6 structural aluminium to ensure maximum durability and lightweight handling in the field.

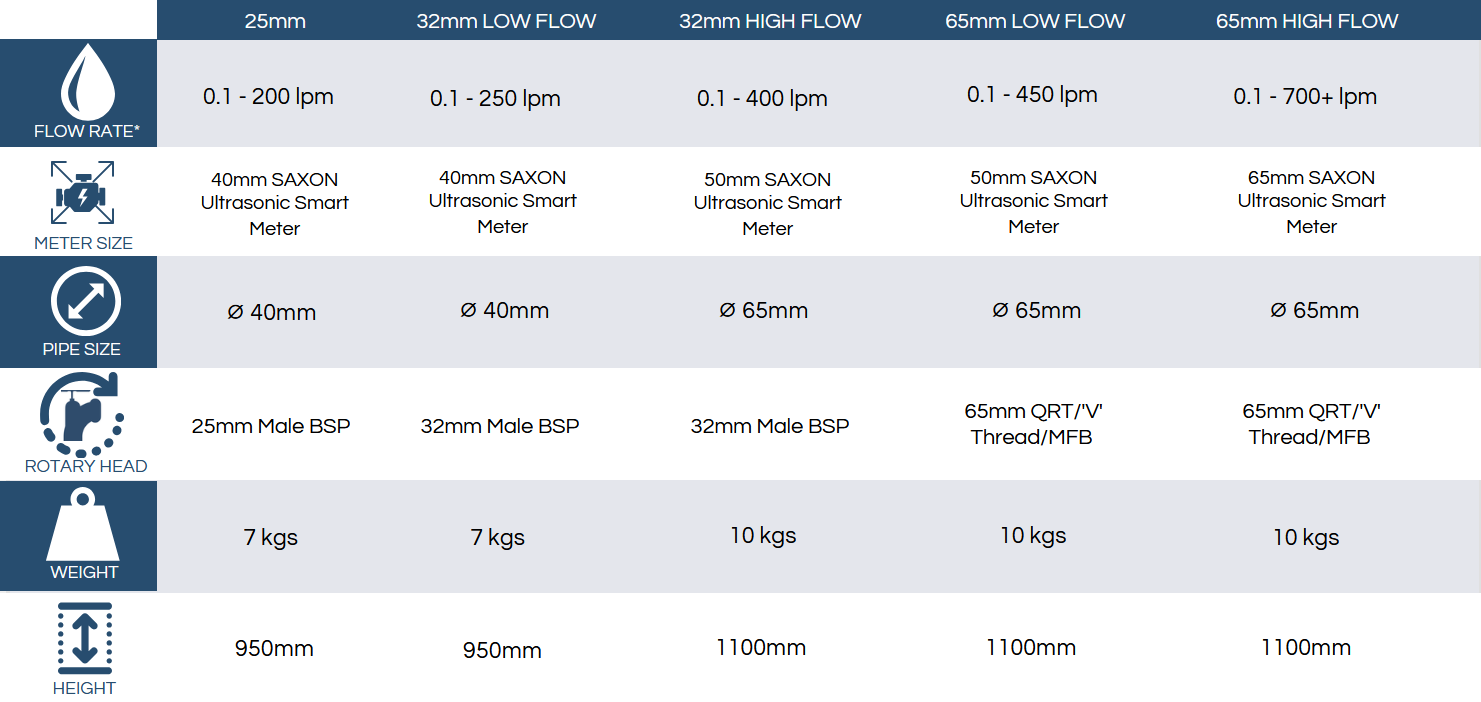

Technical Specifications
Structural Material: Manufactured using high-grade T5 or T6 structural aluminium across all models.
Pressure Rating: Fully certified and pressure tested to PN16 standards.
Custom Coating: Finished with a professional, customised paint finish tailored to your requirements.
Field-Ready Weight: Optimised for transport with an average weight of 7 kg to 10 kg.
Riser Configurations: Tailored sizing and heights available in 25mm, 32mm, and 65mm low-to-high-flow setups.
| Standpipe Size | | Min Flow Rate | | Max Flow Rate |
|---|---|---|
| 25mm | 7.5 lpm | 75 lpm |
| 32mm | 25 lpm | 250 lpm |
| 65mm | 60 lpm | 400 lpm |
Complimentary Laser Engraving
As a standard feature across our entire range, all Saxon metered standpipes include high-definition, precision laser engraving to protect and identify your fleet.
Asset Tracking: Engrave unique standpipe ID numbers and asset codes.
Corporate Identity: Permanently display your business name, logo, and phone number.
Tailored Detailing: Fully customised layout to suit your organisational preferences.
Remote Reading
Our Generation 3 SMART Standpipes are engineered to transmit consumption data remotely, backed by independent Asset Tracking capabilities to secure and locate missing field units to our secure online SR2 Platform. To explore the full features of this software interface, please visit our dedicated Remote Reading page.
Servicing, Calibration & Repairs
At our dedicated Brendale workshop, Saxon Standpipes provides comprehensive servicing, technical repairs, and precision calibration for all standpipe makes and models. Keep your fleet accurate and reliable with our professional maintenance division, handling everything from certified annual calibrations to heavy-duty structural repairs for all standpipe configurations.
No matter the condition, wear, or age of your equipment, our experienced technicians will efficiently restore your assets to peak physical condition and original operational performance. We ensure your standpipes return to the field meeting exact utility standards while keeping your fleet's operational downtime to an absolute minimum.
